OEM Replacement Parts for Wayne Oil Burners
Product Support

Please see the SKU list below for a complete listing of our Wayne OEM replacement parts. Use the drop down button to refine your search by model. If you need immediate delivery and stock information, please contact us.

Available Parts
BRAND ORDER NO. DESCRIPTION PHOTO
PRICE ? To view pricing, login with your Contractor account. Don't have an account? Call us at 1-800-265-4484.
Wayne 100333 Air Cone #SE Stainless (Model MSRH-1) Login
Wayne 100333-002 Air Cone #SE2Stainless (Model MEG-1) Login
Wayne 100540-001 Screw, Air Cone Stainless (Use with SE2 Air Cone) 2REQ Login
Wayne 100610-001 ** replaced with B R642NL ** Oil Valve Complete - 115V Suntec Login
Wayne 100610-002 Oil Valve Complete - 230V Suntec Login
Wayne 100732-001 Ignition Contact Spring (Christmas Tree Shape 2REQ) Login
Wayne 100885-001 Valve Coil Only - 120V For use on 101128-009 Suntec Pump/Valve Combo Login
Wayne 100885-003 Valve Coil Only - 12V For use on 101128-011 Suntec Pump/Valve Combo Login
Wayne 100889-KIT Drop-out Timer Retrofit Kit - MSR 12VDC Login
Wayne 100990-001 Ignition Contact Spring (Funnel Shape 2REQ) Login
Wayne 101126-002 Motor Replacement Kit - 12VDC (Replaces Kit 101126-001) Login
Wayne 101128-009 Pump/Valve Combo - 3GPH 3450RPM Single Stage 120V Solenoid Valve Login
Wayne 101128-010 Pump Valve Combo - 3GPH 3450RPM Single Stage 230V Solenoid Valve Login
Wayne 101128-011 Pump/Valve Combo 3GPH Single Stage 12VDC Solenoid Valve Login
Wayne 101295-SERM Solid State Ignitor Kit 120V/60Hz MSR Series Login

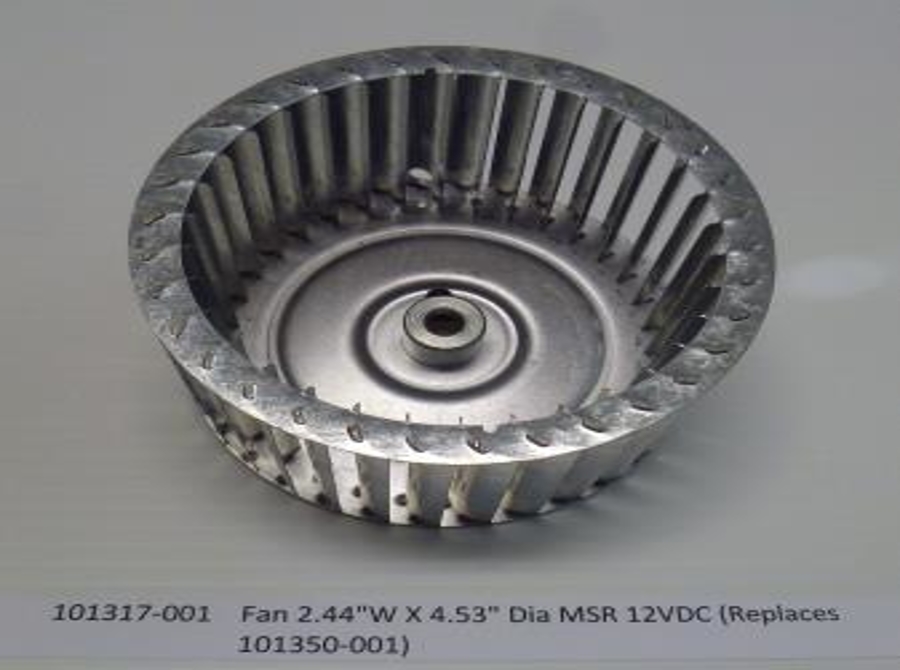

Wayne 101317-001 Fan 2.44"W X 4.53" Dia MSR 12VDC (Replaces 101350-001) Login
Wayne 101343-SER Control - Wayne/Honeywell Primary R7284G1015 (15Sec) Login
Wayne 101382-001 Control ASM - Wayne 12VDC Primary Login
Wayne 101385-SERM Solid State Ignitor Kit 12VDC MSR Burners Login
Wayne 101391-SERM Ignitor Kit 240V-M PLT w/Gasket Login
Wayne 12329 Air Cone - 3"ID 8-Vane, Cast Iron Login
Wayne 12362 Nozzle Adapter - Regular (less flamelock, less centering legs) Login
Wayne 12484 Flange Gasket - Standard 7 3/8"OD X 4 1/4"ID Models MSR, MH, EH, EHA, EHASR Login
Wayne 12575 Electrode Stem/Insulator Models E, OE, EA, OEA, ER & ERA (1 stem, insulator & nut) Login
Wayne 12699 Screw, Air Cone - 1REQ (Use w/all cast iron cones except HS) Login
Wayne 12988 Nozzle Adapter ASM w/flamelock ASM (less centering legs) Login
Wayne 12988-002 Nozzle Adapter ASM w/flamelock ASM (with 4 1/4"D centering legs) Login
Wayne 12989 Air Cone - 3.00"ID Flamelock (No Vanes) Login
Wayne 12990 Air Cone - 3.25"ID Flamelock (No Vanes) Login
Wayne 12VDCCOPKIT2 Control - Wayne 12VDC Primary (Use to add control to Wayne 12VDC pressure wash app) Login
Wayne 12VDCOPKIT Control - Wayne 12VDC Primary (Use to add control to Wayne 12VDC oil burners) Login
Wayne 13002 Air Cone - 2.75"ID Flamelock (No Vanes) Login
Wayne 13003 Air Cone - 3.56"ID Flamelock (No Vanes) Login
Wayne 13276-002 Buss Bar Support Yoke (Replaces 13276 on all models) Login
Wayne 13286 Electrode Stem/Insulator Kit - Models MSR, EH, EHA & EHASR Login
Wayne 13424 Coupling - A or B Fuel Units M Series Login
Wayne 13495 Pump - 3GPH Max 3450RPM Single Stage A2VA7116 Login
Wayne 13645 Pump - 3GPH 2850RPM Single Stage Suntec A2VA7142 Login
Wayne 13841 Pump - 7GPH 3450RPM Single Stage B2YA8916 Login
Wayne 14116 Screw, Air Cone - 3REQ (Used w/all stainless cones except SE2) Login
Wayne 14157 Air Cone #1A Stainless Login
Wayne 14158 Air Cone #2A Stainless Login
Wayne 14159 Air Cone #3A Stainless Login
Wayne 14160 Air Cone #4A Stainless Login
Wayne 14289-KIT Cad Cell - Honeywell C554A1570 - 15" Lead 17' Bracket Login
Wayne 14302 Air Cone #5A Stainless Login
Wayne 14365 Air Cone #6A Stainless Login
Wayne 14366 Air Cone #7A Stainless Login
Wayne 14375 Pump - 7 GPH 3450RPM Single Stage Suntec A2YA7916 Login
Wayne 14396 Air Cone #8A Stainless Login
Wayne 18009-001 Screw, Air Cone Stainless (Use w/HS Air Cones) 3REQ Login
Wayne 20102-001 Electrode ASM Kit - M Series Login
Wayne 20627 (OIL) Motor - 1/7HP 120V 50/60Hz 2850/3450RPM Login
Wayne 20673 Fan 3.12"W X 4.25"D MSR Series 120V/230V burners Login
Wayne 21427 Fan 3.44"W X 4.25"D MSR Series 120V/230V Burners Login
Wayne 23000-KITM Motor Kit - PSC 1/7HP 120V 60Hz 3450RPM Convert M series to PSC Login
Wayne 23101-M Transformer 120V/60Hz M Series Login

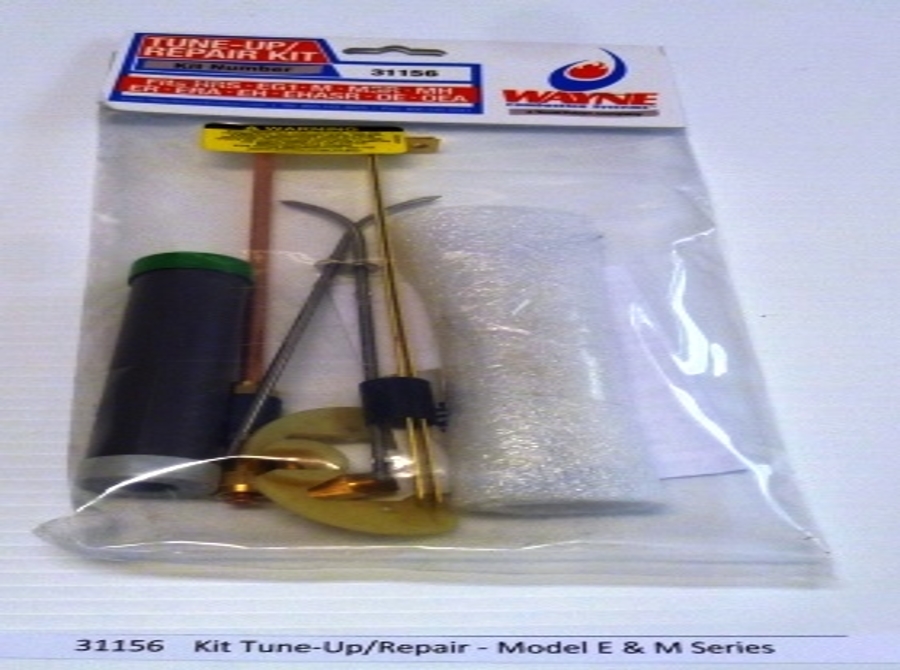

Wayne 31156 Kit Tune-Up/Repair - Model E & M Series Login
Wayne 31812-TMR Solid State Ignitor Kit MSR/EH/EHA/EHASR (For units with Drop-out timer kit) Login
